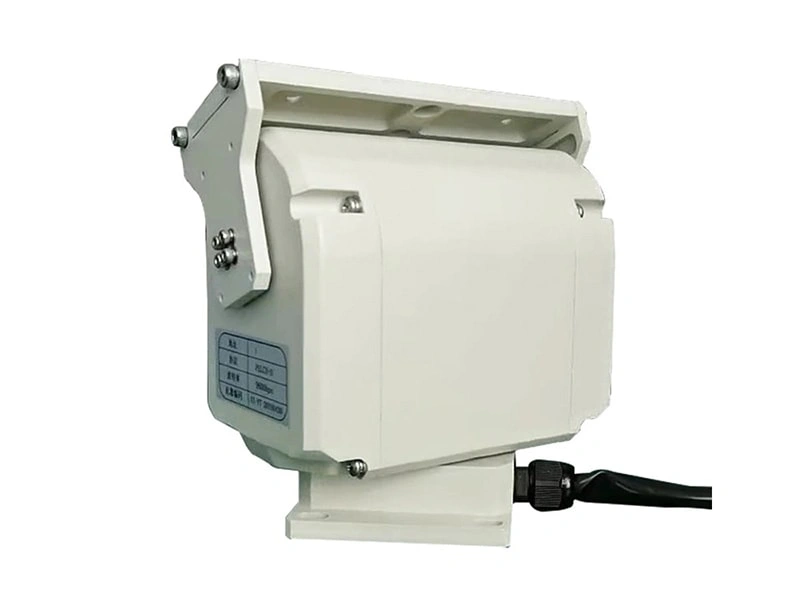

PTZ Control Failure? Troubleshooting Steps for Unresponsive Decoder

If the PTZ camera is out of control and the decoder produces no relay action sound, you can troubleshoot it step by step as follows:

1.Confirm that the power supply of the decoder is normal, and check whether the power cable is loose or has poor contact;

2.Switch the code converter to 485 signal output mode;

3.Check the protocol, baud rate and address code parameters of the decoder against the equipment manual;

4.Check whether the wiring is correct. The standard connection is Pin 1 to 485A and Pin 2 to 485B (or the reverse wiring sequence).

If none of the above steps can solve the problem, test the self-test function of the decoder: after powering off and restarting, a self-test prompt sound should be heard under normal conditions. You can also measure the voltage between the UP/DOWN port and the PTCOM port, which is normally 24V or 220V. The failure of the PTZ decoder may also be caused by a blown fuse, which needs to be replaced in time in this case.
