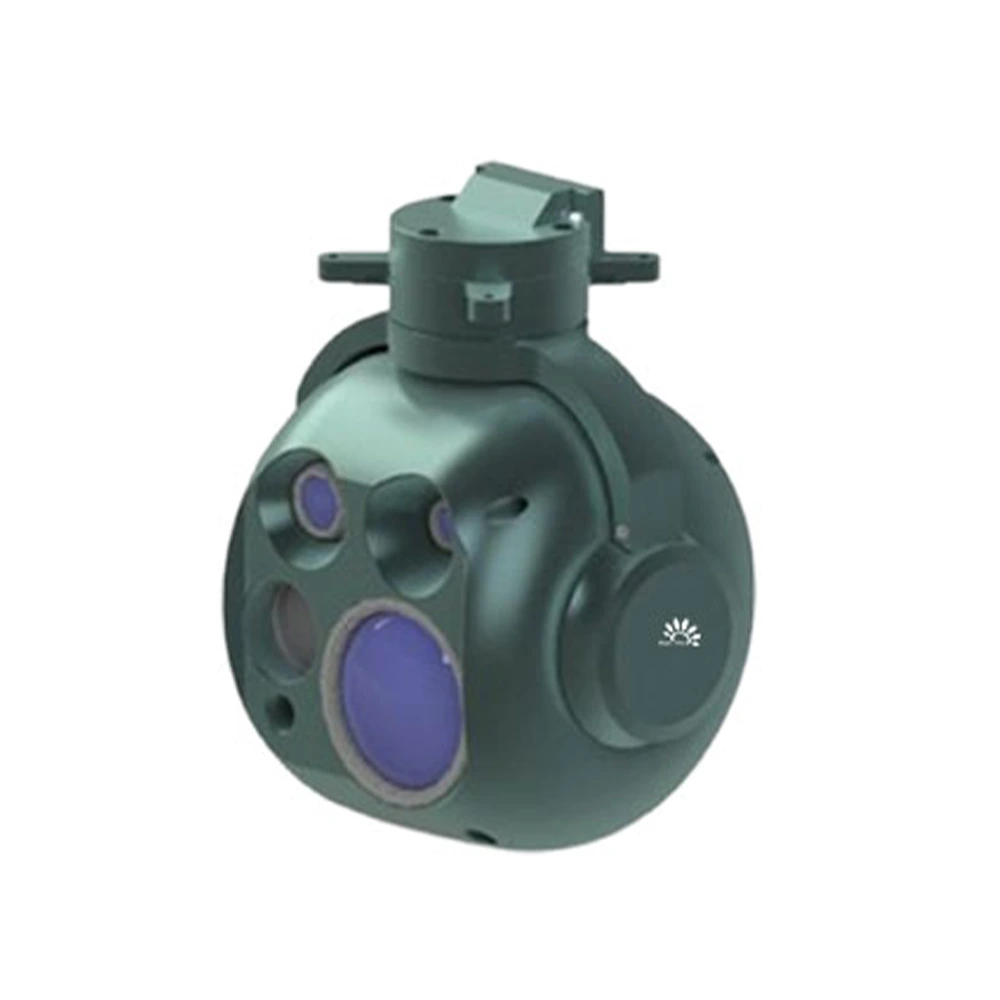

The HP-PDT400 miniature pod, independently developed by HP-PDT400, is a miniature pod that integrates visible light dual-field-of-view, infrared, and laser rangefinder modules. Its main functions include airborne search, identification, tracking, target localization, and target locking of ground vehicle targets in all weather conditions, day and night. It also provides information such as target miss distance, thus achieving integrated reconnaissance and strike capabilities against ground vehicle targets, contributing to the low-altitude economy.
Multispectral complementary advantages, enabling day and night, all-weather operation.
Ground target search, identification, and stable tracking capabilities.
Power-on self-locking function.
Gyro stabilization function, capable of isolating airframe disturbances.
Software upgradeable without disassembly.
Compatible with various rotary-wing UAVs, fixed-wing UAVs, loitering munitions, and other platforms. It can be mounted on the fuselage, nose, or warhead of a UAV, and can withstand the impact overload during launch and vibrations during flight, meeting the needs of military reconnaissance, intelligence gathering, and integrated reconnaissance and strike missions.
| Model Name | HP-PDT400 Miniature Optoelectronic Pod |
| HP-PDT400 Miniature Optoelectronic Pod | 1. Resolution: 640×512 2. Frame Rate: 60fps 3. Lens Focal Length: 24mm 4. Field of View: 18°×13° 5. High Light Protection: Supports resistance to sunlight damage 6. Vehicle Recognition Distance @6×4m: ≥1km |
| High Definition Visible Light 1 |
1. Resolution: 1920×1080 2. Frame Rate: 50fps 3. Lens Focal Length: 25mm 4. Field of View: 12.7°×7° 5. Vehicle Recognition Distance at 6×4m: ≥2.5km |
| High Definition Visible Light 2 |
1. Resolution: 1920×1080 2. Frame Rate: 50fps 3. Lens Focal Length: 7.2mm 4. Field of View: 42°×24.5° 5. Vehicle Recognition Distance (@6×4m): ≥700m |
| Laser ranging | 1. Maximum range: 3km 2. Ranging accuracy: ±2m 3. Ranging frequency: 1Hz |
| Intelligent Analysis | 1. Automatic Tracking: Supports target tracking in manual, automatic, and radar-linked modes. 2. Anomaly Detection: Supports area intrusion detection, boundary crossing detection, area entry detection, area exit detection, and rapid movement detection. 3. Classification and Recognition: Supports classification and recognition of targets such as people, vehicles, and ships. |
| Stable platform | 1. Platform Type: Two-axis stabilized platform 2. Azimuth Axis Rotation Range: -110°～+110° 3. Pitch Axis Rotation Range: -100°～+30° 4. Maximum Angular Velocity: ≥100°/s 5. Stabilization Accuracy: 0.5mrad 6. Angular Position Accuracy: ≤0.5° |
| Electrical interface | 1. Video Interface: 1 RJ45 Ethernet port, supporting UDP/RTSP and other network protocols 2. Communication Interface: 1 RS-422 port |
| Power consumption | 1. Power supply voltage: DC12V～28V 2. Power consumption: Average ≤15W, maximum ≤30W |
| Weight | 1. Weight: ≤410g 2. Dimensions: ≤70mm×90mm×105mm (Length×Width×Height) |
| Environmental adaptability | 1. Operating temperature: -40℃～+60℃ 2. Storage temperature: -45℃～+65℃ 3. Impact resistance: 70g |
| Customization | 1. Supports customized feature development |
