![[300kg] Heavy-duty PTZ system with a horizontal load capacity of up to 300kg. - YZ-BY300W-D](/uploads/image/20260209/1-20260209-9060.webp)
Pan Tilt Zoom is an intelligent support device that achieves stable and precise control through motor drive. It is widely used in photography, videography, security monitoring, drones, and automation equipment. Through advanced sensors and algorithms, PTZ systems detects and counteracts vibrations, tilts, or rotations in real time, thus maintaining smooth and stable footage or ensuring the device remains pointed towards the target.
Pan Tilt Zoom features a built-in high-precision gyroscope and accelerometer for rapid shake response and multi-axis image stabilization, delivering silky-smooth footage whether shooting while walking, running, or in a vehicle.
Supports manual or programmable control, allowing for precise adjustment of angle, direction, and follow speed to meet professional needs such as tracking shots and time-lapse photography.
PTZ Security Camera Systems is compatible with various devices including smartphones, cameras, and action cameras. Some models support customized loads to meet the needs of different scenarios.
PTZ system features intelligent shooting modes such as face recognition, object tracking, gesture control, and motion time-lapse, significantly improving creative efficiency and enjoyment.
Pan Tilt Zoom features a lightweight design, and some models are waterproof and dustproof, making them suitable for outdoor and harsh environments.
Load Capacity: Maximum 300kg
Accuracy: ±0.2°
Weight: Not available

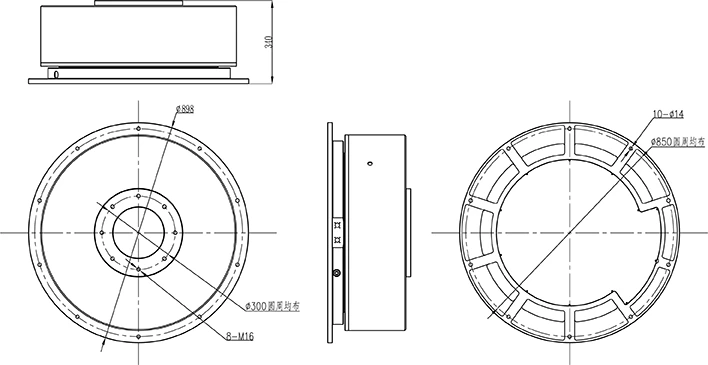

Dimensions: 900*900*340mm
Transmission Method: Worm gear
Operating Temperature: -25℃～+55℃
Installation: Fixed installation
Load Capacity: Top load
Speed: Horizontal 0.01°/s～5°/s
Angle: Horizontal 0°～360° limit rotation
| Model | YZ-BY300W-D |
| Colors | Ice Gray (Army Green, Black, White, *Customizable) |
| Rotation speed | Continuous speed adjustment from 0.02°/s to 5°/s (maximum speed selectable from 0.02°/s to *10°/s; higher speed results in lower load capacity). |
| Rotation angle | Horizontal continuous rotation from 0° to 360° (selectable limit rotation, with a maximum angle selectable within the range of 1° to 320°). |
| Preset position | 200 |
| Positioning accuracy | ±0.2° |
| Repeatability | ±0.2° |
| Self-check | Power-on self-test (*No self-test optional) |
| Location return | Query return (real-time return optional; RS485 interface does not support real-time return). |
| Auxiliary switch | *Optional (1-4 groups, passive, normally open) |
| Lens preset position | *Optional (Supports and is adaptable to various lenses such as FUJINON, COMPUTAR, and KOWA) |
| Lens control speed | *Optional (zoom and focus control speed continuously adjustable) |
| Automatic cruise | Two patrol lines, each with 40 patrol points. |
| Automatic return to position | Automatic return time can be set from 1 to 60 minutes. |
| Automatic scanning | 1 |
| Salt spray protection | *Optional (After continuous spraying for 48 hours at a pH value between 6.5 and 7.2, the machine operates normally with no obvious changes on the surface). |
| Communication Protocol | PELCO_D（PELCO_P、ModBus-RTU Optional） |
| Communication baud rate | 9600bps（2400/4800/115200 bps Optional） |
| Communication interface | RS485（RS422/RS232/*Network interface * Wireless remote control optional） |
| Input power range | DC24V(*AC220V Optional） |
| Static power consumption | ≤5W |
| Operating temperature | -25℃～+55℃，90%±3%，Non-condensing (*-40℃～+55℃ optional) |
| Storage temperature | -40℃～+65℃ |
| Load | ≤300kg |
| (Increased speed and increased rotation diameter will result in a corresponding decrease in load.) | |
| Size(mm) | 900*900*340 |
| Total weight | None available |
| Bearing method | Bearing method |
| Transmission method | Worm gear drive |
| Protection level | IP66 |
| Installation method | Fixed installation (*vehicle-mounted/*crane-mounted optional; load capacity is halved when vehicle-mounted). |
| Upper part of the line | Confirmation required (The upper cable is used for powering and communicating with the equipment mounted on the pan-tilt unit; this will be determined based on specific requirements.) |
| Lower line | Confirmation required (The lower outgoing cable is used for power supply and communication to the pan-tilt unit and the equipment mounted on it; this will be determined based on specific requirements.) |
【Remark】* The function of annotation is additional charges，Please be aware.
Security Surveillance
Audible Deterrence
Forest Fire Monitoring
Urban Safety
Border and Coastal Surveillance
Highway Monitoring
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
We are the direct factory, of course,it's competitive, quality/price and services are guaranteed.
Yes. Welcome at any time.
