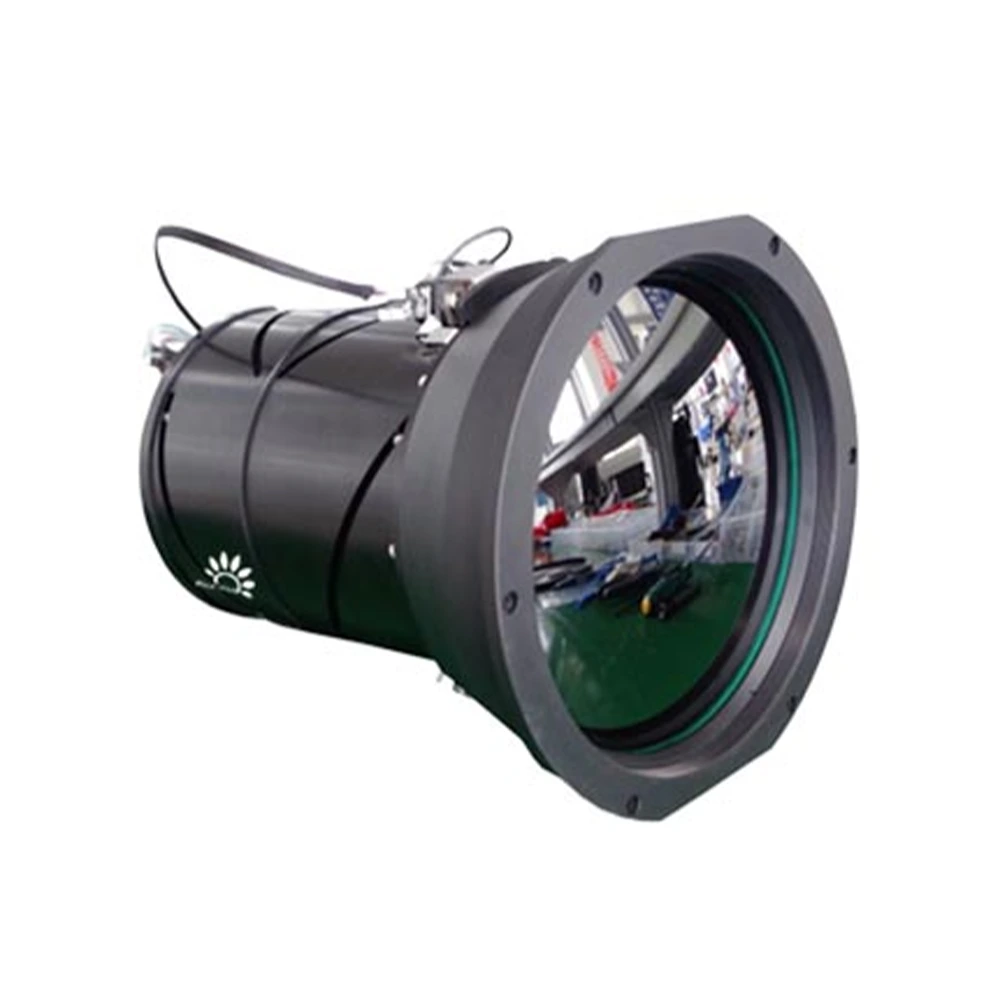

The HP-TC series uncooled thermal imaging modules are based on infrared technology and continuous zoom infrared optics, employing a high-sensitivity ultra-fine VOx focal plane imaging detector. They integrate advanced digital circuitry and image processing algorithms, enabling them to penetrate dust, smoke, rain, snow, and darkness, providing all-weather image observation.
Fully domestically produced and independently controllable
High detection sensitivity
Smooth and stable zooming
Image enhancement capability
High degree of intelligence
Suitable for the development or integration of optoelectronic products such as turntables and PTZ cameras. After development, the product can be applied to intrusion alarms and anti-crystal detection in key areas such as airports, prisons, transportation routes, water conservancy facilities, financial centers, and nuclear, biological, and chemical bases, as well as mobile monitoring applications such as vehicle-mounted, ship-mounted, and shipborne systems.
| Model Name | HP-TC Series Uncooled Thermal Imaging Module |
| Effective range | Vehicles: 1.8km~6km, People: 0.7km~2.6km DJI drones: 0.25km~1km, Small aircraft (15m×5m): 4.7km~15km Medium-sized boats (20m×5m): 4.7km~15km |
| Infrared thermal imaging | 1. Detector: Uncooled focal plane array VOx detector 2. Resolution: 384×288/640×512 3. Wavelength: 8μm~14μm 4. NETD: Better than 40mK 5. Lens Focal Length: 25mm~75mm/22.5mm~105mm/30mm~120mm/31mm~155mm/21mm~105mm/23mm~230mm/30mm~300mm 6. Lens Control: Supports motorized zoom, manual/autofocus 7. High Light Protection: Supports protection against sunlight damage |
| Enhanced features | 1. Autofocus Optimization: Supports remote adjustment of autofocus accuracy parameters to adapt to different scenarios. 2. Lifetime Management: Includes health index recording function, supporting working time, number of power on/off cycles, operating temperature, and extreme temperatures. 3. Remote Maintenance: Features fault query, self-test, and remote restart functions; online and remote upgrades are also supported. |
| Interface/Power Consumption | 1. Power supply interface: 1 DC 12V port 2. Communication interface: 1 LVDS interface, 1 RJ45 network port3. 功耗：≤15W |
| Environmental adaptability | 1. Operating temperature: -40℃～60℃ 2. Storage temperature: -45℃～+70℃ 3. Protection rating: IP67 for the front panel |
| Customization | 1. Supports customized feature development |
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
