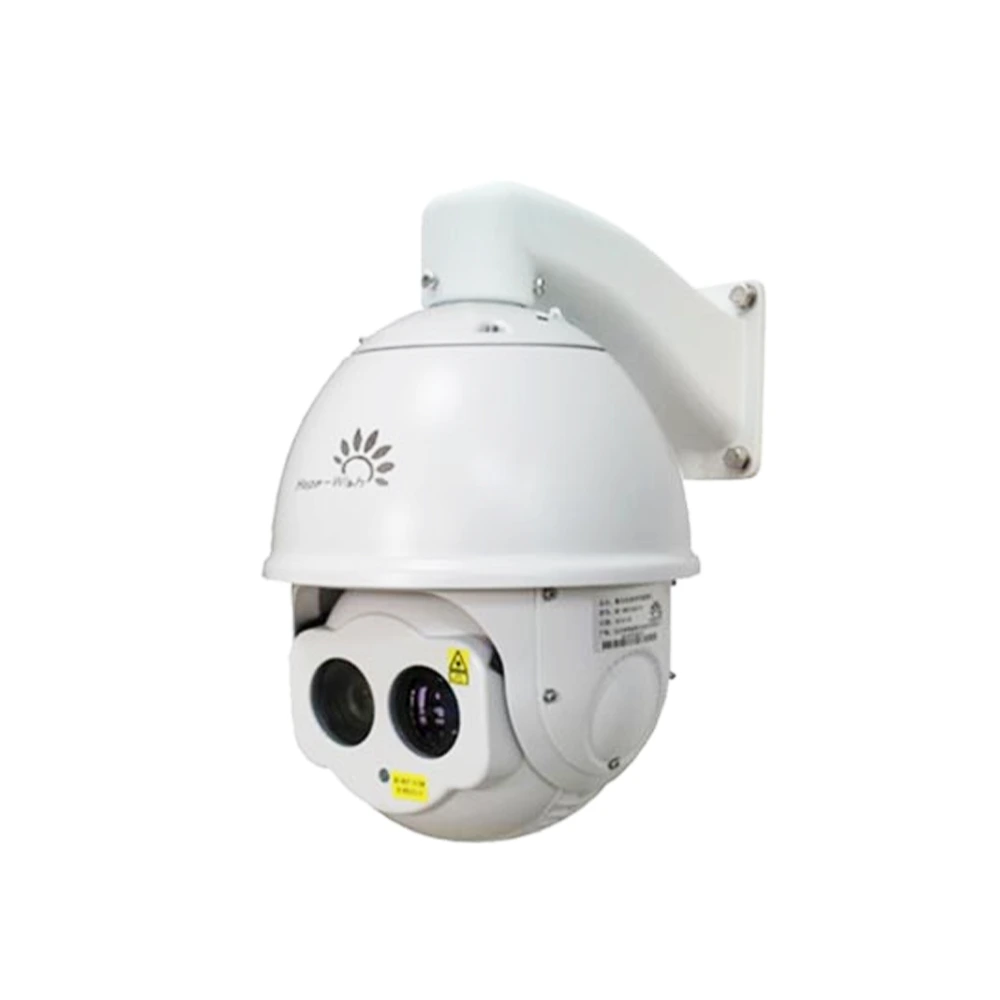

The HP-DTVC series dual-band thermal imaging high-speed dome camera is an optoelectronic product designed for specialized applications. The product adopts a high-speed dome design concept, featuring a simple, reliable, compact, and sophisticated structure; high positioning accuracy, fast rotation speed, smooth start-up and shutdown, and convenient control. It integrates a high-definition visible light or uncooled infrared thermal imager or laser illumination module, a power mechanism, a precision transmission device, a digital decoder, an image processing module, and a control module, making it suitable for 24/7 image acquisition and monitoring.
Supports image scale; supports connection to multiple sensors.
Integrates infrared thermal imaging, high-definition visible light, video encoding, pan-tilt housing, and control electronics into one modular design with high integration, easy to install and maintain.
Built-in GPU chip, supports multiple detection algorithms such as area intrusion detection, entry/exit detection, personnel gathering detection, loitering detection, item abandonment detection, and item retrieval.
Precision motor drive, sensitive response, stable operation, small accuracy deviation, and jitter-free image.
Supports 3D intelligent positioning function, enabling click-tracking and zooming.
Primarily used in fire prevention monitoring scenarios such as forest and grassland fire prevention and scenic area fire prevention; perimeter security monitoring for safe cities, large venues, ports, and docks; 24/7 monitoring scenarios in harsh outdoor environments such as oil fields, highways/railways, and environmental protection.
| Model Name | DTVC4300-20 | DTVC4300-30 | DTVC4300-50 |
| Detection range | 1700m to vehicles, 720m to people, 1000m to fire source (@2×2m) | 2800m to vehicles, 1200m to people, 1400m to fire source (@2×2m) | 4200m to vehicles, 1640m to people, 2000m to fire source (@2×2m) |
| Identification distance | 500m to vehicles, 200m to pedestrians | 870m for vehicles, 350m for pedestrians | 1200m for vehicles, 500m for pedestrians |
| Thermal imaging | 1. Detector: Sixth-generation uncooled focal plane array VOx detector 2. Detector array: 384×288 3. Wavelength: 8～14μm 4. NETD: 40mK (@25℃) 5. Image enhancement: SDE digital image enhancement technology, improving image details and supporting 255 levels of thermal image enhancement adjustment. |
||
| 6. Lens: 20mm | 8. Lens: 30mm | 10. Lens: 50mm | |
| 7. Field of view: 18.5° × 14.0° | 9. Field of view: 12.4° × 9.3° | 11. Field of view: 7.5° × 5.6° | |
| Visible light | 1. Sensor Type: Back-illuminated ultra-low-light starlight-level CMOS 2. Minimum Illumination: Color: 0.0005 Lux; Monochrome: 0.0001 Lux 3. Lens: 4.7mm～141mm, 30x optical zoom, 32x digital zoom 4. Image Processing: Supports white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, and wide dynamic range. |
||
| PTZ | 1. Rotation speed: 0.1°/s～200°/s, supports adaptive focal length rotation speed. 2. Rotation angle: Horizontal: 360° continuous rotation; Pitch: -90°～+5° 3. Preset position cruise: 255 preset positions, supports lens zoom and focus position adjustment. |
||
| Intelligent Analysis | 1. Intelligent Analysis: Supports area intrusion detection, boundary crossing detection, motion detection, patrol detection, loitering detection, gathering detection, lingering detection, and reverse movement detection. 2. Automatic Tracking: Supports multi-scenario tracking and alarm-linked tracking. |
||
| interface | 1. Communication: 1-channel RJ45, 10/100 Base-T auto-sensing 2. Power Supply: DC24V, reverse connection protection |
||
| Environmental adaptation | 1. Operating temperature: -40℃～+60℃ 2. Operating humidity: ≤95% 3. Protection rating: IP66 4. Lightning protection: Interface circuit has built-in surge protection, 4000V lightning protection |
||
| Volume and weight | 1. Weight: 5kg 2. Dimensions: Φ230(mm)×325(mm) 3. Installation method: Wall-mounted/Hanging-mounted |
||
| Customization | 1. Supports customized feature development | ||
