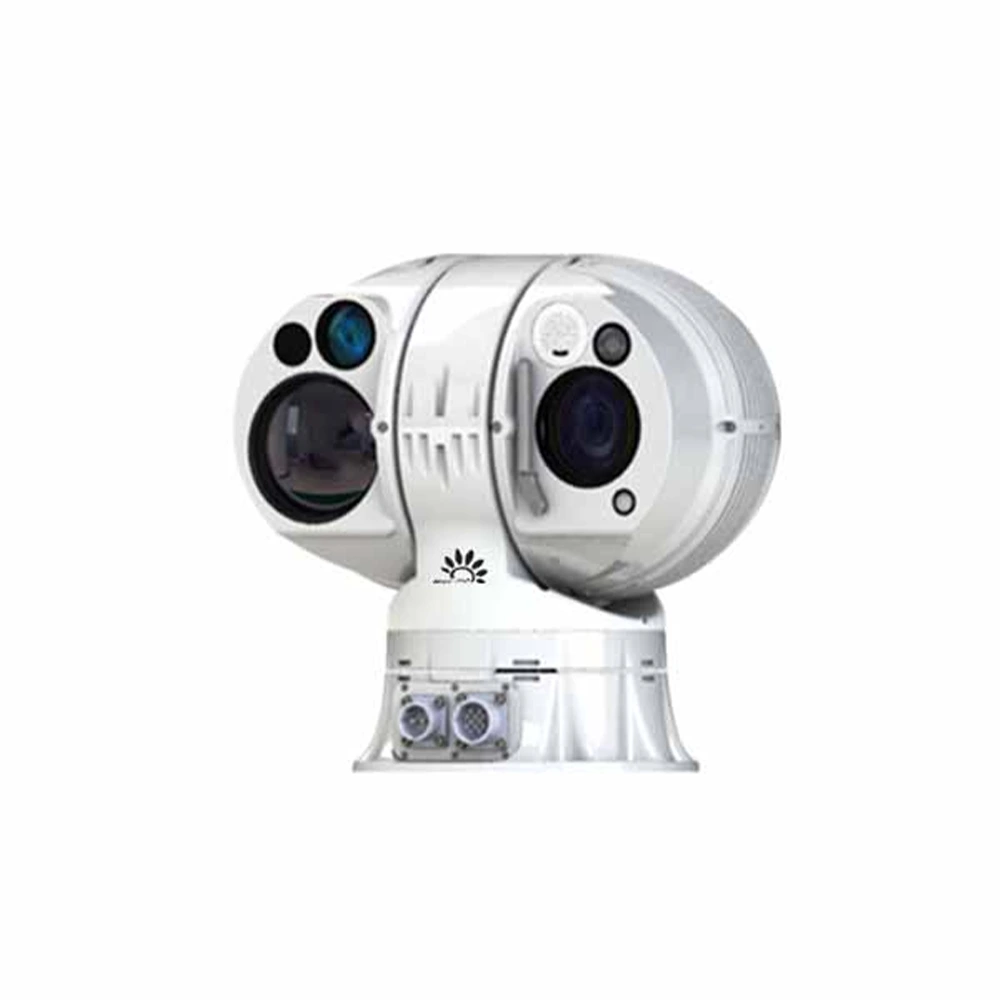

HP-DMS10 series intelijen ilektronik sentry em i wanpela lait, multi-fanksenel, multi-pepos, na intelijen optoelektronik diteksen divais we i bungim planti sensa, kontrol modul, pointing divais, na intelijen algorithm. Em inap long mekim ol wok olsem lukluk na was, luksave long ol samting i kamap, na givim tok lukaut long sekyuriti.
Multispectral complementary advantages, meeting the requirements of day and night, all-weather operation.
Supports intelligent functions such as hotspot alarm, target detection, tracking, and equipment health management (PHM).
Integrated detection and alarm design, combining detection and warning modules.
Quasi-spherical structure design, providing better wind and vibration resistance and clearer imaging.
Flexible deployment, simple operation, stable and reliable, and easy maintenance.
Suitable for intrusion alarms in key areas such as airports, prisons, transportation routes, water conservancy facilities, financial centers, and nuclear, biological and chemical bases; mobile monitoring applications such as forest and grassland fire prevention, scenic area fire prevention, and fire prevention for power transmission lines, chemical industrial parks, oil depots, and oil/gas pipelines.
| Model Name | Intelligent Electronic Sentinel (Multi-Light) | Intelligent electronic sentinel (laser) |
| Visible light | 1. Sensor: Back-illuminated ultra-low-light starlight-level CMOS 2. Resolution: 1920×1080 3. Illuminance: Color: 0.0005 Lux; Black and White: 0.0001 Lux; 0 Lux (IRON) 4. Lens Focal Length: 7mm～300mm / 7mm～330mm 47x optical zoom 16x digital zoom 5. Focus Control: Manual/Autofocus |
|
| Infrared thermal imaging (optional) | 1. Detector: Sixth-generation uncooled focal plane array VOx detector 2. Resolution: 640×512/384×288 3. NETD: 40mK (@25℃ F1.0) 4. Lens Focal Length: 50mm/75mm/100mm fixed focal length 5. High Light Protection: Supports resistance to sunlight damage |
- |
| Illumination | 1. Laser type: High-definition floodlight homogenizing light source 2. Illumination angle: 3°～65° 3. Illumination distance: 300 meters |
1. Laser type: High-definition floodlight homogenizing light source 2. Illumination angle: 1°～20° 3. Illumination distance: 1000 meters |
| Audible and visual warning: Integrated with a high-volume speaker and strobe light, supporting customizable alarm sounds and laser glare warnings. | ||
| Pan-tilt | 1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s 2. Rotation range: Horizontal: 360° continuous rotation; Pitch: -90°～+90° 3. Preset positions: 3000 |
|
| Interface | 1. Power supply interface: 1 DC 12V～36V 2. Communication interface: 1 RJ45 Ethernet port (supports optional 4G/5G transmission) |
|
| Power consumption | 1. Peak power consumption: ≤60W | |
| Weight Dimensions | 1. Weight: ≤10kg (including load) 2. Dimensions: 312mm×200mm×298mm (Length×Width×Height) |
|
| Environmental adaptability | 1. Operating temperature: -40℃～60℃ 2. Operating humidity: ≤95% RH 3. Protection rating: IP67 |
|
| Customization | 1. Supports customized feature development | |
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
