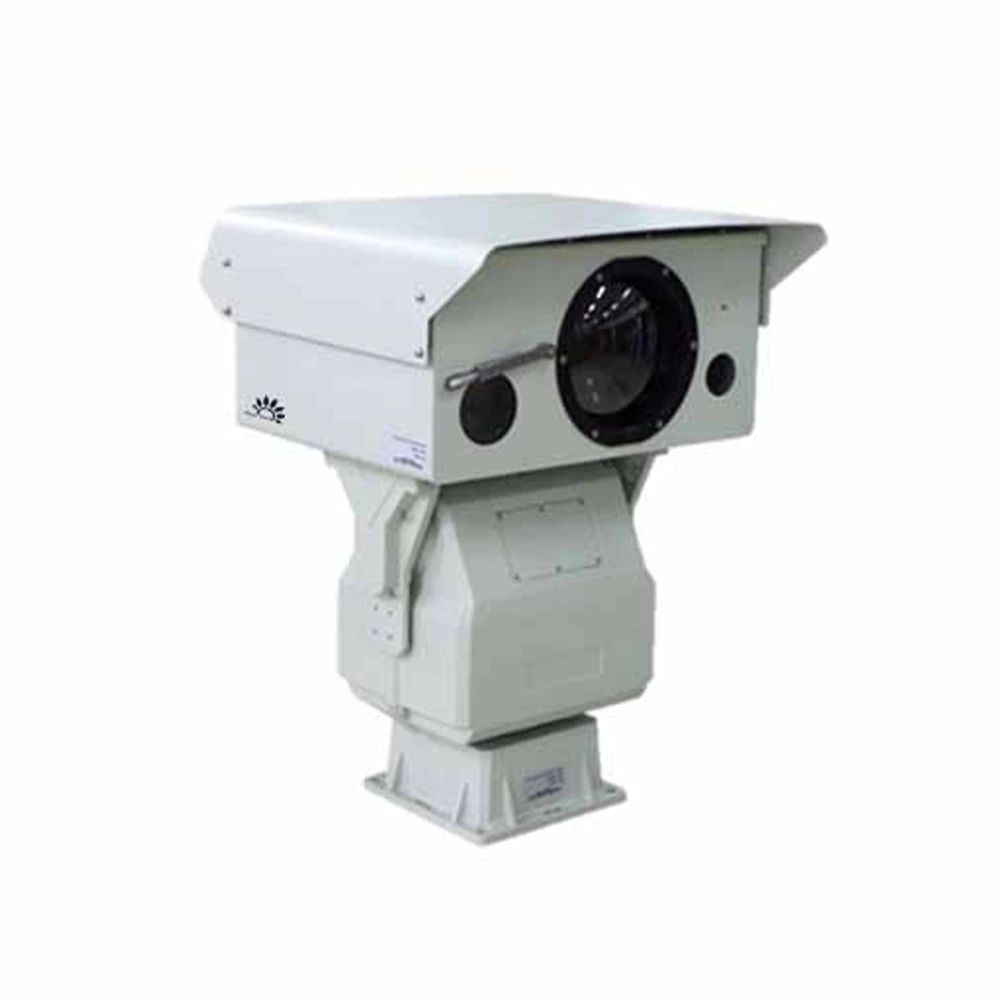

The HP-TTVC series intelligent multi-band cameras are designed and developed for remote day and night monitoring based on sixth-generation uncooled infrared technology and high-definition visible light imaging technology. With built-in intelligent hotspot and smoke detection algorithms, they can automatically detect distant heat sources such as flames, vehicles, and people, making them ideal for automated remote monitoring and early warning of fires in areas such as forest fire prevention, livestock and grassland areas, coal mines, and large grain silos.
Multispectral complementary advantages enable rapid search and close-range detail observation of large-scale targets day and night, in all weather conditions.
Utilizes a heavy-duty CNC gimbal for 360° continuous rotation observation, ensuring stable operation, minimal image jitter, adaptive focal length and rotation speed, and precise target positioning.
Supports hotspot alarms, smoke and fire alarms, temperature detection; supports area intrusion detection; supports vehicle, ship, human, and animal detection, classification, and identification.
Supports self-diagnosis and self-recovery; supports strong light protection and sunburn prevention; supports multiple configuration scene modes, significantly improving user experience and reducing operating costs.
Expandable to laser ranging, BeiDou/GPS, and other sensors to form a multi-functional situational awareness long-range monitoring device.
Primarily used for port, river, and lake monitoring; key material monitoring; airport monitoring; oil field and oil depot security; forest and grassland fire prevention monitoring; ecological and environmental monitoring; urban aerial surveillance; and day and night monitoring along highways and railways.
| Model | HP-TVC Series Intelligent Multiband Camera |
| Thermal imaging | 1. Detector: 6th generation uncooled focal plane array VOx detector 2. Resolution: 640×512 3. Wavelength: 8～14μm 4. NETD: 40mK (@25℃ F1.0) 5. Lens Focal Length: 25mm~75mm/31mm~155mm/37mm~185mm/23mm~230mm/30mm~300mm 6. Lens Control: Motorized zoom; manual/autofocus |
| Visible light | 1. Sensor Type: Back-illuminated ultra-low-light starlight-level CMOS 2. Minimum Illumination: Color: 0.0005 Lux; Black and White: 0.0001 Lux; 0 Lux (IRON) 3. Lens Focal Length: 7mm～330mm / 11mm～860mm / 12.5mm～750mm 4. Lens Control: Megapixel high-definition power zoom; Manual/Autofocus |
| laser source | 1. Laser Type: New patented GHT-III high-definition floodlight ultra-uniformity infrared light source technology 2. Illumination Distance: 1000m~3000m selectable 3. Wavelength: 810nm military-grade infrared laser 4. Illumination Angle: 1°～20°/0.5°～20°/0.3°～20° selectable, DSS digital step-by-step illumination angle control technology |
| Smart functions | 1. Intelligent Analysis: Supports intrusion detection, boundary crossing detection, entry/exit area detection, and motion detection. 2. Supports single-scene tracking, multi-scene tracking, panoramic tracking, and alarm-linked tracking. 3. Alarm Management: Supports alarm snapshot uploading. |
| PTZ | 1. Range: Horizontal 0～360°, Pitch -45°～+45° 2. Rotation speed: Horizontal 0.01°/s～30°/s, Pitch 0.01°/s～15°/s, supports lens focal length speed adaptive function 3. Accuracy: ±0.1° |
| Interface | 1. Network interface: 1 RJ45 port, 10/100 Base-T auto-sensing 2. Power supply: AC/DC 24V, reverse connection protection |
| Power consumption | 1. Total power consumption: ≤180W |
| Weight | 1. Total weight: 45kg (including gimbal) |
| Environmental indicators | 1. Operating temperature: -40℃～60℃ 2. Storage temperature: -45℃～70℃ 3. Operating humidity: ≤90% RH 4. Protection rating: IP66 |
| Customization | 1. Supports customized feature development |
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
We are the direct factory, of course,it's competitive, quality/price and services are guaranteed.
Yes. Welcome at any time.
