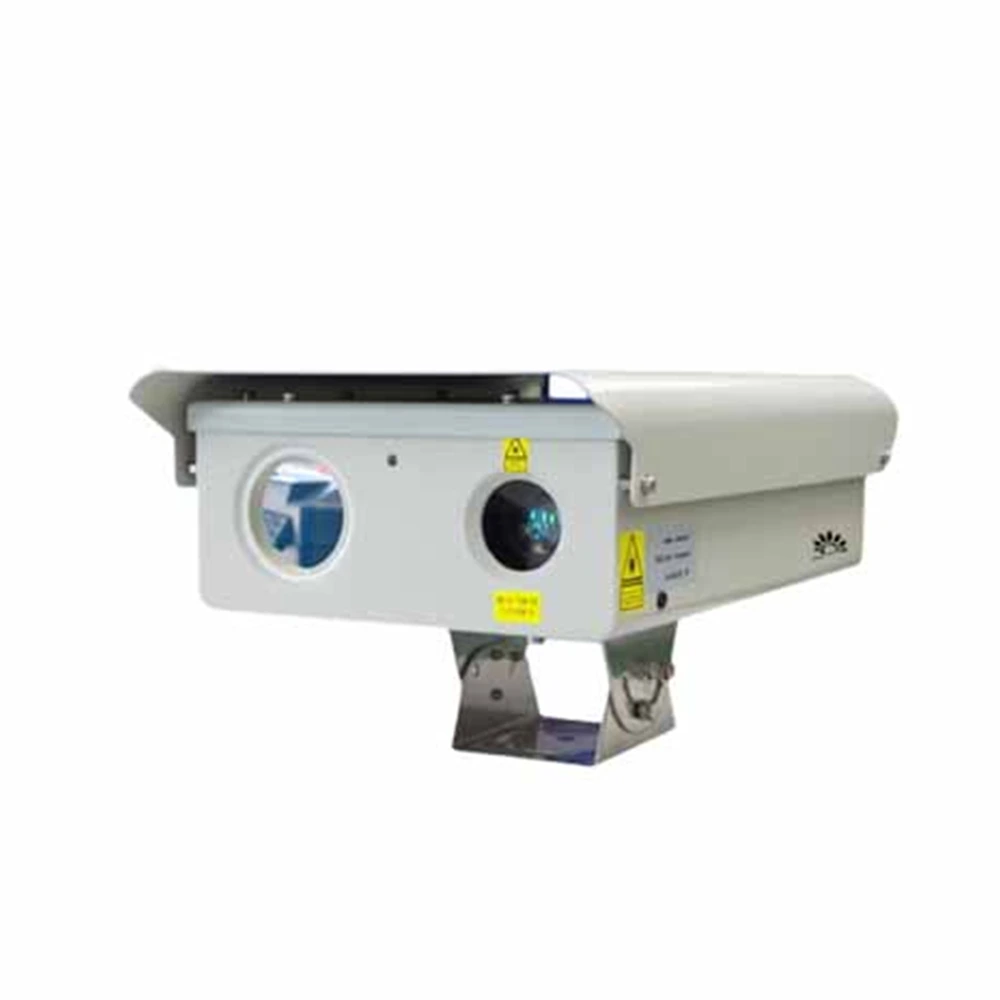

The HP-RC1930C-TG laser window camera is a laser imaging product designed for precise day and night facial recognition on highways. It is primarily used in highway toll stations and road checkpoints.
Compact design for easy location and installation;
Infrared-free optical design for strong anti-interference;
Unique laser shaping and homogenization technology and optical power control technology for optimal lighting and imaging effects, capable of recognizing faces and license plates;
Super fog-penetrating mode enhances image detail and clarity in foggy or hazy conditions;
The entire unit uses a high-strength aluminum alloy shell for excellent heat dissipation, IP66 protection, and is rain and dust resistant.
Primarily used in highway toll stations and road checkpoints.
| Model | HP-RC1930C-TG |
| Effective range | Daytime: Personnel identification range 100 meters Nighttime: Personnel identification range 50 meters Through vehicle window: 2-5 meters |
| Imaging devices | 1. Target surface: 1/2.8″ starlight-level CMOS sensor with integrated ICR dual filters for day/night switching 2. Resolution: 2 megapixels 3. Illuminance: 0.002 Lux |
| Imaging lens | 1. Focal length: 4.3～129mm, optical motorized zoom 2. Focusing: Manual/autofocus, 3A adaptive active focusing algorithm, precise and high-speed 3. Day and night wide spectrum: 0.4-0.75um visible light wide spectrum window and 0.8-0.95um near-infrared laser narrow spectrum window, independent dual-pass light windows for day and night, improving the signal-to-noise ratio of imaging light and stray light. |
| Laser lighting | 1. Power: 5W 2. Illumination angle: 2°～40°, 0.1° precise control 3. Laser switch: Remote control, external triggering |
| Enhanced features | 1. Fog Penetration Function: Enhances image detail and clarity in foggy or hazy conditions. 2. Glass Transparency: Allows clear identification of concealed occupants inside the vehicle, day and night, through tinted windows. |
| Protective shield | 1. Material: Precision-cast aluminum alloy shell, stainless steel fasteners, resistant to strong winds 2. Structure: Integrated dual-window design 3. Protection rating: IP66 |
| Electrical interface | 1. Network Interface: 1-channel RJ45, 10/100 Base-T auto-sensing (integrated video output and RS485 control) 2. Power Supply: AC/DC 24V, reverse connection protection 3. Physical Interface: Alloy waterproof aviation connector |
| Power consumption and weight | 1. Total power consumption: Maximum 25W 2. Total weight: 5.6kg 3. Dimensions: 420×250×120mm |
| Environmental indicators | 1. Operating temperature: -25℃～+55℃ 2. Storage temperature: -40℃～+65℃ 3. Humidity: <90%RH 4. Shock resistance: 0.2g (Complies with the requirements of Severity Level 2 in GB/T15211—2013, 5.4) 5. Shock resistance: 15g (Complies with the requirements of Severity Level 3 in GB/T15211—2013, 5.3) 6. Protection rating: IP66 |
| Customization | 1. Supports customized feature development |
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
