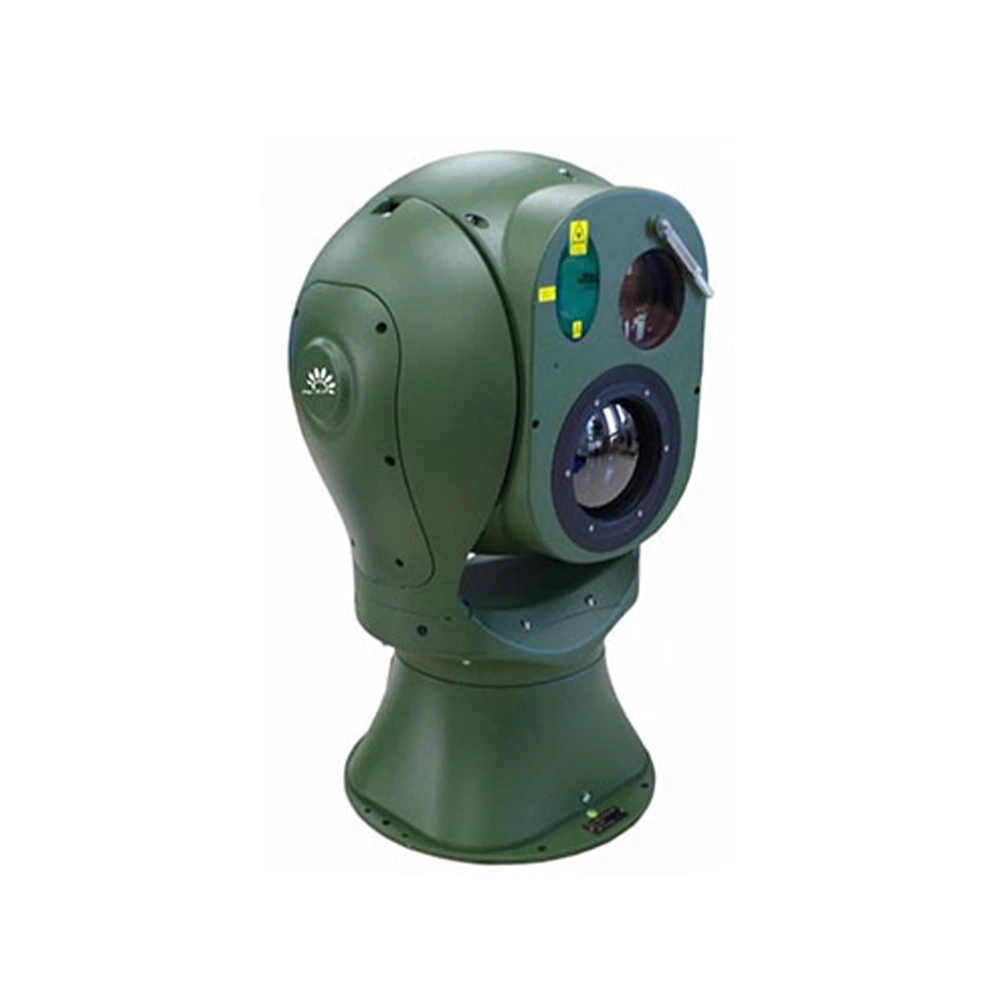

The HP-ZTVC300 three-band optoelectronic PTZ Security Cameras is a long-range optoelectronic detection system independently developed and designed by HP-ZTVC. It can integrate high-definition visible light cameras, cooled thermal imaging, laser ranging, and other multi-spectral detection modules. It can also be equipped with laser ranging modules as needed, enabling all-weather, all-time, and all-dimensional detection, positioning, tracking, identification, and tracing of targets. It can be widely used in three-dimensional security defense of key areas and targets such as airports, ports, and nuclear, biological, and chemical facilities.
The HP-ZTVC300 three-band photoelectric PTZ Systems is a long-range photoelectric detection system independently developed and designed by HP-ZTVC. It integrates high-definition visible light cameras, cooled thermal imaging, laser ranging, and other multi-spectral detection modules. Depending on requirements, it can also be equipped with laser ranging modules, enabling all-weather, all-time, and all-dimensional target detection, positioning, tracking, identification, and tracing capabilities. It can be widely used for three-dimensional security protection of key areas and targets such as airports, ports, and nuclear, biological, and chemical facilities.
Key components/devices such as infrared detectors, visible light sensors, thermal imaging lenses, visible light lenses, infrared FPGA image processors, visible light ISP processors, and SoC processors all utilize mature devices. Both hardware and software are independently developed by our company, ensuring a high degree of independent control.
Capable of supporting sensor modules such as high-magnification visible light television cameras and large-aperture uncooled infrared thermal imagers, enabling ultra-long-distance target observation.
Integrates high-definition visible light, infrared thermal imaging, and high-power laser illuminators. The complementary advantages of three-band detection and multi-source data convergence and fusion processing ensure targets have nowhere to hide, meeting monitoring needs in day and night, all-weather environments.
Rapid start-up and shutdown, smooth operation, facilitating the capture and tracking of fast-moving targets.
Azimuth return... The rotation range is 0°～360°, and the pitch range is -90°～+90°, achieving blind-spot-free detection and full-dimensional coverage;
Supports functions such as area intrusion alarm, boundary crossing alarm, motion detection, target recognition, automatic tracking, radar linkage, hotspot alarm, and 3D zoom positioning, greatly improving the system's unmanned, automated, and information-based levels;
Equipped with internal temperature self-regulation, turntable stall protection, automatic protection against strong heat sources, automatic focusing protection, lightning and surge protection, etc.; supports internal air pressure monitoring, anti-tamper and anti-collision alarms, etc., greatly improving the system's reliability;
The whole machine has good sealing performance, the ball chamber is filled with nitrogen, and the protection level can reach IP66; the outer shell is coated with high-performance anti-corrosion paint, and highly corrosion-resistant connectors are selected to ensure that the product can operate stably for a long time in harsh outdoor environments.
Primarily used for airport monitoring, oil field and oil depot security, fire prevention monitoring in forests, grasslands, coal mines, and grain warehouses, port, river and lake monitoring, ecological and environmental monitoring, urban aerial surveillance, and anti-drone applications.
| Model Name | HP-ZTVC300 Three-Band Optical PTZ Systems |
| Uncooled infrared thermal imager | 1. Detector: Uncooled vanadium oxide (VOx) infrared focal plane detector 2. Spectral range: 8μm～14μm 3. Resolution: 640×512 4. Lens focal length: 25～210mm 5. Optical zoom: 8x 6. Image enhancement: SDE digital image detail enhancement technology 7. Polar false color: Supports 18 false color settings 8. Image adjustment: Brightness, contrast, gamma correction 9. Encoding format: H.264/H.265/MJPEG 10. Lens control: Supports optical and electronic continuous zoom functions; electronic zoom is adjustable from 1x to 8x; the lens can achieve autofocus function after zooming. 11. Camera life management: Supports querying camera health index, detector temperature, ambient temperature, cumulative working time, shutter count, and extreme temperature. 12. Alarm management: Has alarms for 16 preset scenes; each preset scene can be set with no less than 8... Triangular or quadrilateral warning zones for the area; each preset scene can have a maximum of no less than 8 tripwires. |
| Visible light camera | 1. Detector: Uncooled vanadium oxide (VOx) infrared focal plane detector 2. Spectral range: 8μm～14μm 3. Resolution: 640×512 4. Lens focal length: 25～210mm 5. Optical zoom: 8x 6. Image enhancement: SDE digital image detail enhancement technology 7. Polar false color: Supports 18 false color settings 8. Image adjustment: Brightness, contrast, gamma correction 9. Encoding format: H.264/H.265/MJPEG 10. Lens control: Supports optical and electronic continuous zoom functions; electronic zoom is adjustable from 1x to 8x; the lens can achieve autofocus function after zooming. 11. Camera life management: Supports querying camera health index, detector temperature, ambient temperature, cumulative working time, shutter count, and extreme temperature. 12. Alarm management: Has alarms for 16 preset scenes; each preset scene can be set with no less than 8... Triangular or quadrilateral warning zones for the area; each preset scene can have a maximum of no less than 8 tripwires. |
| Laser lighting | 1. Laser Type: Brightness uniformity across the entire focal length > 90% 2. Irradiation Distance: 2000 meters 3. Wavelength: 810nm (Military-grade infrared laser) |
| Turntable | 1. Structural Form: Spherical, multi-dimensional freeform surface shape 2. Viewing Window: Extra-large spherical chamber with three viewing windows 3. Horizontal Rotation Range: 0×360° continuous rotation 4. Pitch Rotation Range: -90°～+90° 5. Limits: Pitch has a soft limit function, programmable 6. Horizontal Speed: 200°/s 7. Pitch Speed: 90°/s 8. Speed Adaptive: Intelligent sensing speed adjustment function, supports lens focal length speed adaptive function 9. Positioning Accuracy: Better than 0.05° 10. Positioning Time: Better than 0.05° 11. Zero Point Setting: 12. Preset Positions: 2048 13. Path Scan: Supports preset point navigation, line scan, frame scan, and apple peel scan; scan speed is adjustable. 14. Watch Function: Supports watch preset point line scan navigation and apple peel scan. 15. Lens Servo: Supports lens field of view, magnification, ZOOM/FOCUS value query, feedback, and positioning functions. 16. PTZ Angle: Supports lens field of view, magnification, ZOOM/FOCUS value query, feedback, and positioning functions. |
| Electrical interface | 1. Network Interface: One 10M/100M auto-sensing Ethernet port 2. Network Protocols: Supports TCP/IP, UDP, IPv4; supports HTTP, RTP, RTSP, NFS, NTP, DNS, FTP; supports ONVIF2.0, GB28181, and other network protocols |
| 3. Power Interface: One DC 48V port | |
| Environmental adaptability | 1. Operating temperature: -40℃～60℃ 2. Storage temperature: -45℃～+70℃ 3. Humidity: ≤95% RH 4. Protection rating: IP66 |
| Power supply for the whole machine | Power Supply: Equipped with an ultra-wide input power adapter, AC220V±20% to DC48V Power Consumption: Maximum power consumption of the Pan Tilt Zoom ≤600W, stable power consumption ≤150W |
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
We are the direct factory, of course,it's competitive, quality/price and services are guaranteed.
Yes. Welcome at any time.
