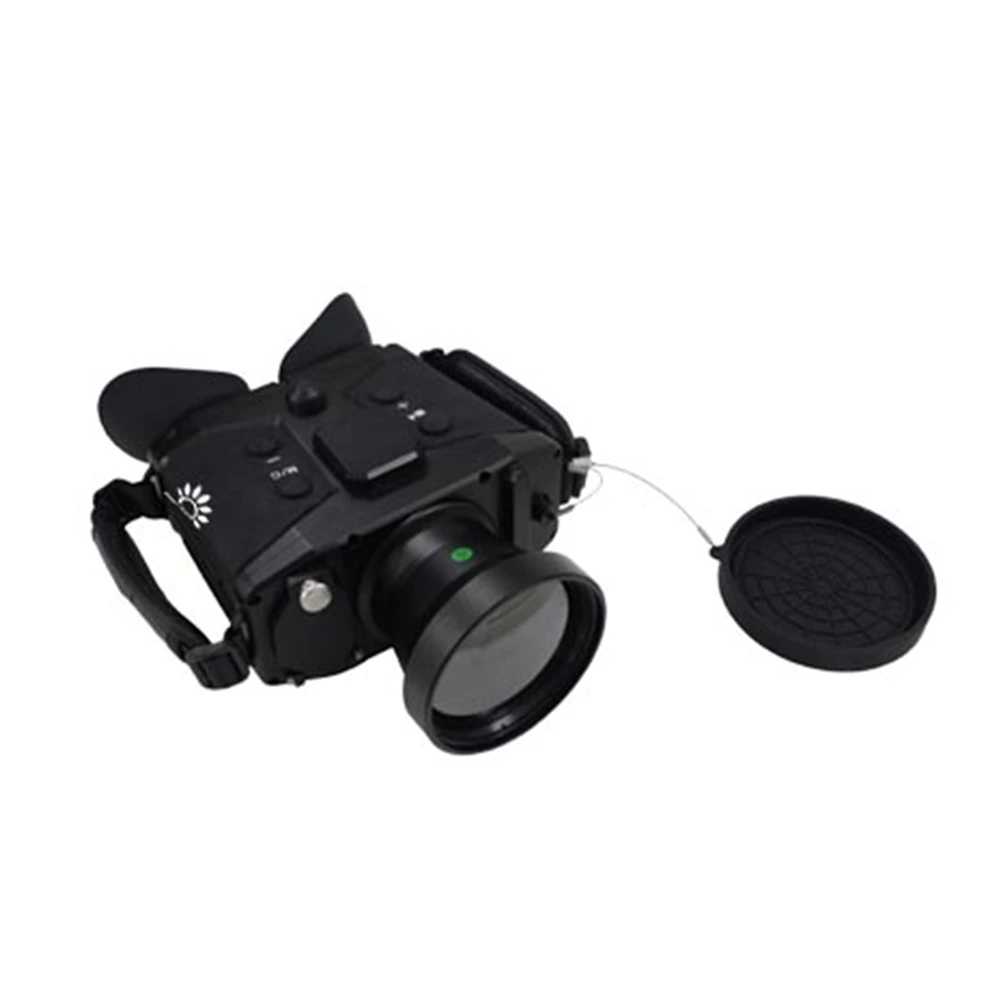

The HP-MTC series handheld thermal imager is a thermal imaging product designed for portable, mobile night vision observation. Employing fifth-generation uncooled infrared technology, unique imaging circuit components, a precision AS optical system, and a reliable structural design, this optoelectronic product can achieve target search and observation up to 3km. It can be used for handheld and fixed observation, for nighttime reconnaissance and target search.
Based on fifth-generation miniaturized detection technology, the ultra-compact design reduces the overall size and cost, making it easy to carry and use.
The entire unit uses a high-strength aluminum alloy shell, providing strong shock resistance, IP66 protection, and protection against rain and dust.
Detection sensitivity (NETD) can reach 50mk, resulting in finer image quality and less impact from fog, rain, and snow.
Unique AS optical design and high-precision optomechanical design ensure excellent imaging quality.
SDE image detail enhancement technology produces smooth, noise-free images with strong adaptability, easily detecting low-contrast hidden targets.
Suitable for forest fire prevention patrols and key area protection patrols in unlit environments at night, as well as for public security and criminal investigation in urban areas, oil fields, and railways.
| Model Name | HP-MTC6105 | HP-MTC4105 |
| Detection range | 3000m to vehicles, 1100m to people, 1500m to fire (2m x 2m) | |
| Identification distance | 1000m for vehicles, 420m for pedestrians | |
| Detector | Fifth-generation uncooled focal plane array VOx detector | |
| Resolution | 640×512 | 384×288 |
| Spectral range | 8～14μm | |
| NETD | 50mK（@25℃ F1.0） | |
| Lens focal length | 50mm | |
| Field of view | 8.8°×7.0° | 5.3°×4.0° |
| Image processing | 1. Image Enhancement: SDE digital image enhancement technology improves image details. 2. Image Polarity: Two polarities: hot black and hot white. 3. Electronic Magnification: 0.1x stepless continuous electronic magnification from 1× to 4×. |
|
| WIFI | 1. Supports Wi-Fi 2. Supports APP preview |
|
| Function | 1. Supports high-temperature hotspot alarm function 2. Supports high-temperature alarm threshold setting |
|
| Display method | 1. Micro-eyepiece: OLED microdisplay, binoculars 2. Pixels: 1024×768 3. Concealment: Includes eye patch, high concealment |
|
| Storage | 1. Storage Media: Built-in 32GB memory card 2. Capacity: Capable of taking 80,000 JPEG photos, recording 24 hours of MP4 video, and exporting via USB. |
|
| Operation method | 1. Material: Precision-cast aluminum alloy shell, stainless steel fasteners, anti-slip rubber sleeve 2. Structure: Four buttons for both hands, ergonomic design |
|
| Powered by | 1. Built-in battery: 18650 lithium battery 2. Continuous working time: ≥4 hours |
|
| Electrical interface | 1. DC 12V charging port (6W power consumption) 2. USB output port 3. RS-485 output port 4. Removable SD card slot |
|
| Volume and weight | 5. Total weight: 1.3kg 6. Dimensions: 166mm × 166mm × 83mm (L x W x H) |
|
| Environmental indicators | 1. Operating temperature: -25℃～+55℃ 2. Storage temperature: -40℃～+60℃ 3. Humidity: <90%RH 4. Protection rating: IP66 |
|
| Accessories | 1. Packaging box: Moisture-proof box 2. Cables: Video output and USB export cable 3. Lithium batteries: 2 pieces 4. Charger: Battery charger |
|
