Pan Tilt Zoom is an intelligent support device that achieves stable and precise control through motor drive. It is widely used in photography, videography, security monitoring, drones, and automation equipment. Through advanced sensors and algorithms, PTZ systems detects and counteracts vibrations, tilts, or rotations in real time, thus maintaining smooth and stable footage or ensuring the device remains pointed towards the target.
Pan Tilt Zoom features a built-in high-precision gyroscope and accelerometer for rapid shake response and multi-axis image stabilization, delivering silky-smooth footage whether shooting while walking, running, or in a vehicle.
Supports manual or programmable control, allowing for precise adjustment of angle, direction, and follow speed to meet professional needs such as tracking shots and time-lapse photography.
PTZ Security Camera Systems is compatible with various devices including smartphones, cameras, and action cameras. Some models support customized loads to meet the needs of different scenarios.
PTZ system features intelligent shooting modes such as face recognition, object tracking, gesture control, and motion time-lapse, significantly improving creative efficiency and enjoyment.
Pan Tilt Zoom features a lightweight design, and some models are waterproof and dustproof, making them suitable for outdoor and harsh environments.
Load Capacity: Maximum 3kg
Accuracy: ±0.1°
Weight: 7kg

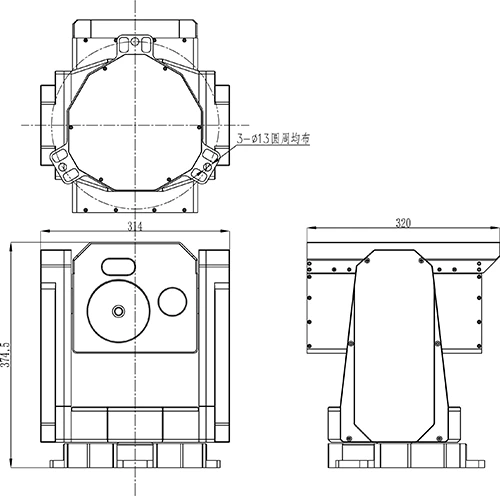

Dimensions: 314*320*374.5 (mm)
Transmission Method: Worm Gear
Operating Temperature: -20℃～+55℃
Installation: Vehicle-mounted
Load Capacity: Side load
Speed: Horizontal 0.01°～30°/s; Vertical 0.01°～20°/s
Angle: Horizontal 0～360° continuous rotation; Vertical -90°～+90°
| Model | YZ-BY003W |
| Colors | Ice Gray (Army Green, Black, White, *Customizable) |
| Rotation speed | Horizontal speed variation: 0.01°～30°/s (continuous speed change); |
| Pitch speed variation: 0.01°～20°/s (continuous speed change) | |
| Rotation angle | Horizontal continuous rotation from 0 to 360°; |
| Pitch from -90° to 90° | |
| Preset position | 200 |
| Positioning accuracy | ±0.1° |
| Repeatability | ±0.1° |
| Self-check | Power-on self-test (*No self-test optional) |
| Location return | Optional (Query return, real-time return) |
| Auxiliary switch | *Optional (2 sets, passive, normally open) |
| Lens preset position | *Optional (Supports and is adaptable to various lenses such as FUJINON, COMPUTAR, and KOWA) |
| Lens control speed | *Optional (zoom and focus control speed continuously adjustable) |
| Automatic cruise | Two patrol lines, each with 40 patrol points. |
| Automatic return to position | Automatic return time can be set from 1 to 60 minutes. |
| Automatic scanning | 1 |
| Salt spray protection | *Optional (After continuous spraying for 48 hours at a pH value between 6.5 and 7.2, the machine operates normally with no obvious changes on the surface). |
| Communication Protocol | PELCO_D（PELCO_P、ModBus-RTU Optional） |
| Communication baud rate | 9600bps（2400/4800/115200 bps Optional） |
| Communication interface | RS485 (RS422/RS232/* network interface optional) |
| Input power range | AC220V(*DC24V/*DC12V Optional） |
| Overall power consumption | ≤50W |
| Static power consumption | ≤5W |
| Operating temperature | -25℃～+55℃, 90%±3%, non-condensing |
| Storage temperature | -40℃～+65℃ |
| Load | ≤3kg |
| Size | 314*320*374.5 |
| Total weight | 7Kg |
| Bearing method | Side load |
| Transmission method | Worm gear drive |
| Protection level | IP66 |
| Installation method | Vehicle-mounted (off-road) |
【Remark】* The function of annotation is additional charges，Please be aware.
Security Surveillance
Audible Deterrence
Forest Fire Monitoring
Urban Safety
Border and Coastal Surveillance
Highway Monitoring
1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service
PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.
We are the direct factory, of course,it's competitive, quality/price and services are guaranteed.
Yes. Welcome at any time.
