YZ-BY002W

[2Kg] Intelligent Variable Speed Mini Light-Duty Pan Tilt Zoom(Customizable)

Pan Tilt Zoom is an intelligent support device that achieves stable and precise control through motor drive. It is widely used in photography, videography, security monitoring, drones, and automation equipment. Through advanced sensors and algorithms, PTZ systems detects and counteracts vibrations, tilts, or rotations in real time, thus maintaining smooth and stable footage or ensuring the device remains pointed towards the target.

GET A QUOTE

Key Features

01

Superior Stability

Pan Tilt Zoom features a built-in high-precision gyroscope and accelerometer for rapid shake response and multi-axis image stabilization, delivering silky-smooth footage whether shooting while walking, running, or in a vehicle.
02

Precise Control

Supports manual or programmable control, allowing for precise adjustment of angle, direction, and follow speed to meet professional needs such as tracking shots and time-lapse photography.
03

Wide Compatibility

PTZ Security Camera Systems is compatible with various devices including smartphones, cameras, and action cameras. Some models support customized loads to meet the needs of different scenarios.
04

Intelligent Functions

PTZ system features intelligent shooting modes such as face recognition, object tracking, gesture control, and motion time-lapse, significantly improving creative efficiency and enjoyment.
05

Portable and Durable

Pan Tilt Zoom features a lightweight design, and some models are waterproof and dustproof, making them suitable for outdoor and harsh environments.

Specification

Load Capacity: Maximum 2kg
Accuracy: ±0.1°
Weight: 3.2kg
Dimensions: 184*100*175mm
Transmission Method: Worm gear
Operating Temperature: -20℃～+65℃
Installation: Fixed/Vehicle-mounted/Lifting
Load Capacity: Top load/Side load
Speed: Horizontal 0.01°～30°/s; Pitch 0.01°～15°/s

Parameters

Model	YZ-BY002W
	Basic indicators	Optional
Colors	Ice Gray	Army Green, Black, White, *Customizable
Rotation angle	Horizontal: 0°～360° continuous rotation Pitch: -60°～20° limited rotation	Horizontal: 0°～≤320° limit rotation Pitch: Selectable within the range of -90°～90°, the larger the angle, the smaller the load capacity.
Rotation angle
Rotation speed	Horizontal: 0.01°/s～30°/s Pitch: 0.01°/s～15°/s	Horizontal: High speed 30°/s～55°/s selectable, higher speed results in lower load capacity. Pitch: High speed 15°/s～30°/s selectable, higher speed results in lower load capacity.
Rotation speed	Horizontal: 0.01°/s～30°/s Pitch: 0.01°/s～15°/s
Preset position	200	*1000
Positioning accuracy	±0.1°	none
Power-on self-test	Power-on self-test	*No self-test
Angle feedback	Query feedback/Real-time feedback	Note: RS485 interface does not support real-time feedback.
Auxiliary switch	none	1-2 channels, passive, normally open (commonly used for power on/off, signal control, wiper control, etc.)
Automatic cruise	Two routes, each with 40 patrol points.	none
Automatic return to position	Automatic return to position can be set from 1 to 60 minutes.	none
Automatic scanning	1	none
Salt spray protection	none	*No significant changes were observed on the surface after continuous spraying for 48 hours at a pH value between 6.5 and 7.2.
Communication Protocol	PELCO_D	*PELCO_P、ModBus-RTU、Customized Agreement**
Baud rate	9600bps	2400/4800/115200 bps
Communication interface	RS422	*RS485/RS232/Network interface**
Power supply voltage	DC24V	*DC12V
Overall power consumption	≤50W	Note: This will change as functional indicators change.
Static power consumption	≤2W	Note: This will change as functional indicators change.
Operating temperature	-20℃～+65℃，Non-condensing	none
Storage temperature	-40℃～+65℃	none
Load	1kg～2kg	Note: The center of gravity is 20mm directly above the top plate. Increased speed, larger pitch angle, and higher center of gravity will all result in a corresponding decrease in load.
Size	184100175 （LWHmm）	Reduce height/Customize appearance
Self-respect	3.2Kg	Note: This will change as functional indicators change.
Bearing method	Top load	Side load
Self-locking performance	Self-locking	none
Protection level	IP66	none
Installation method	Fixed installation	Vehicle-mounted/Lifting/*Marine-mounted; Note: The load capacity is approximately halved when the vehicle or ship is in motion.
Installation method	Fixed installation
System type	Open-loop system	*Closed-loop system (incremental encoder)
Upper part of the line	One straight-through signal cable (4-core) One DC 24V output power cable (2A)	Standard power supply / Standard signal / Gigabit Ethernet / Other Note: The upper outgoing cable is used for powering and communicating with the equipment mounted on the pan-tilt unit; the specific requirements will be determined accordingly.
Upper part of the line
Lower line	One direct-to-standard signal cable (4-core) One DC24V input power cable (system power supply) One RS422 cable (PTZ communication)	Standard power supply / Standard signal / Gigabit Ethernet / Other Note: The bottom outgoing cable is used for powering and communicating with the pan-tilt unit and the equipment mounted on it; the specific requirements will determine the outgoing cable.


Note: Features marked with * are items that require separate payment.

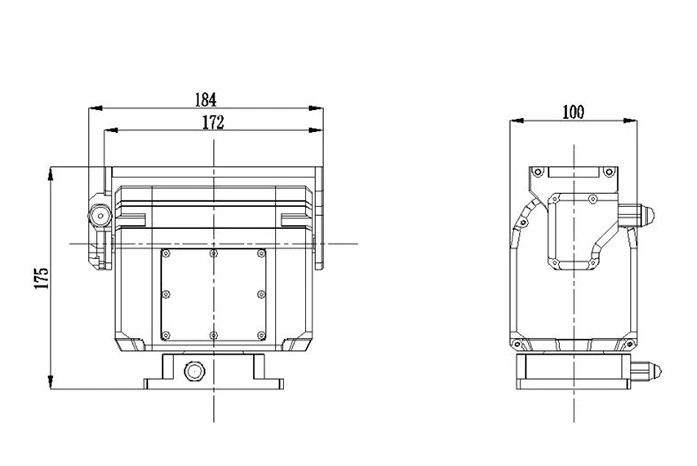

Dimensions

Application

Security Surveillance
Audible Deterrence
Forest Fire Monitoring
Urban Safety
Border and Coastal Surveillance
Highway Monitoring

FAQs

How to Choose a PTZ Manufacturer?

1. Understand Your Product Requirements
2. Evaluate Industry Experience
3. Review Successful Case Studies
4. Consider After-Sales Service

What is a PTZ?

PTZ devices are typically equipped with various devices, including optical lenses (such as infrared cameras), acoustic sensors, radar, antennas, lighting searchlights, etc.

Is your price competitive compared with other companies?

We are the direct factory, of course,it's competitive, quality/price and services are guaranteed.

Can I visit your company?

Yes. Welcome at any time.
